Box & Pan Brakes: 5 Year Warranty - Made in USA

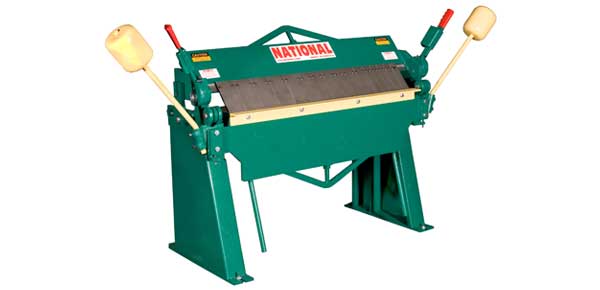

National has four popular floor model box and pan brakes designed to be easy and simple to operate. Standard with 2”, 3” and 4” finger widths, stop rods for repeat bends, two large counterweights, and precision bearings on the apron. All steel body construction with extra heavy tie rods for minimum deflection.

	Specifications
Model	U4812	U7216	U7212	U9616
Capacity (Yield Strength 30,000 lbs. @ rated capacity)	Mild Steel 12 Gauge: 2.7mm Stainless Steel 16 Gauge: 1.6mm	Mild Steel 16 Gauge: 1.6mm Stainless Steel 20 Gauge: .9mm	Mild Steel 12 Gauge: 2.7mm Stainless Steel 16 Gauge: 1.6mm	Mild Steel 16 Gauge: 1.6mm Stainless Steel 20 Gauge: .9mm
Fimger Width	2”, 3”, 4” 51, 76, 102mm	2”, 3”, 4” 51, 76, 102mm	2”, 3”, 4” 51, 76, 102mm	2”, 3”, 4” 51, 76, 102mm
Maximum Depth of Box	4”/102mm	4”/102mm	4”/102mm	4”/102mm
Bending Length	49”/1245mm	73”/1854mm	73”/1854mm	97”/2464mm
Shipping Weight	1150lbs/522kgs	1850lbs/839kgs	2100lbs/953kgs	2200lbs/998kgs
Floor Space w/ counterweight	95” x 27” x 55” 2413 x 686 x 1397mm	119” x 27” x 55” 3023 x 686 x 1397mm	129” x 27” x 59” 3277 x 686 x 1499mm	143” x 27” x 55” 3632 x 686 x 1397mm
