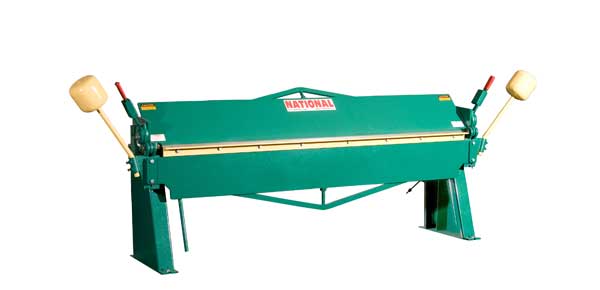

Hand Brakes: 5 Year Warranty - Made in USA

National offers these hand brakes with a great deal of pride. A simple design, utmost strength with a long life of dependable service. Streamline designed for fast, accurate bending — even for the inexperienced workman. Heavy steel body construction with extra heavy tie rods for perfect alignment. Precision bearings on the apron assures you of a smooth operating brake. These brakes come with a full three year warranty

	Specifications
Model	N4812	N7212	N9616
Capacity (Yield Strength 30,000 lbs. @ rated capacity)	Mild Steel 12 Gauge: 2.7mm Stainless 16 Gauge: 1.6mm	Mild Steel 12 Gauge: 2.7mm Stainless 16 Gauge: 1.6mm	Mild Steel 16 Gauge: 1.6mm Stainless 20 Gauge: .9mm
Bending Length	49”/1245mm	73”/1854mm	97”/2464mm
Shipping Weight	1050lbs/476kgs	1800lbs/816kgs	1600lbs/726kgs
Floor Space w/ Gauges	95” x 27” x 55” 2413 x 686 x 1397mm	129” x 27” x 59” 3277 x 686 x 1499mm	143” x 27” x 55” 3632 x 686 x 1397mm

	Specifications
Model	N9618	N9614	N12018
Capacity (Yield Strength 30,000 lbs. @ rated capacity)	Mild Steel 18 Gauge: 1.3mm Stainless 22 Gauge: .85mm	Mild Steel 14 Gauge: 1.9mm Stainless 18 Gauge: 1.2mm	Mild Steel 18 Gauge: 1.3mm Stainless 22 Gauge: .85mm
Bending Length	97”/2464mm	97”/2464mm	121”/3073mm
Shipping Weight	1500lbs/680kgs	1750lbs/794kgs	2650lbs/1202kg
Floor Space w/ Gauges	153” x 27” x 59” 3886 x 686 x 1499mm	153” x 27” x 59” 3886 x 686 x 1499mm	177” x 29” x 59” 4496 x 737 x 1499mm

	Specifications
Model	N12016	N12014	N14418
Capacity (Yield Strength 30,000 lbs. @ rated capacity)	Mild Steel 16 Gauge: 1.6mm Stainless 20 Gauge: .9mm	Mild Steel 14 Gauge: 1.9mm Stainless 18 Gauge: 1.2mm	Mild Steel 18 Gauge: 1.3mm Stainless 22 Gauge: .85mm
Bending Length	121”/3073mm	121”/3073mm	145”/3683mm
Shipping Weight	2800lbs/1270kgs	3200lbs/1452kg	3450 lbs/1553kgs
Floor Space w/ Gauges w/ Counterweight	177” x 29” x 59” 4496 x 737 x 1499mm	177” x 29” x 59” 4496 x 737 x 1499mm	201” X 29 X 59” 5105 x 737 x 1499mm
