Heavy Duty Box & Pan Brakes: 5 Year Warranty - Made in USA

Finger Width	3" 76mm	4” 102mm	5" 127mm	6" 152mm	Total
U6-4812	5	2	5	0	12
U6-7212	5	4	7	1	17
U6-9614	5	6	9	2	22
U6-12016	6	10	10	2	28

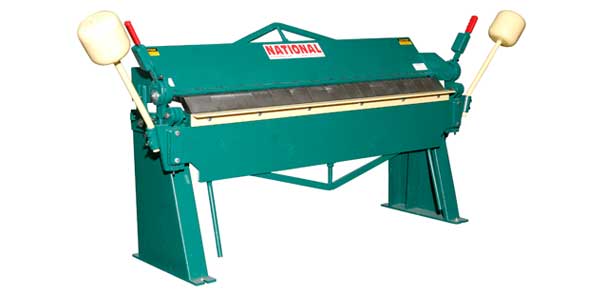

National offers four heavy duty box and pan brakes made in the U.S.A. Standard with heavy body construction, precision bearings on the apron, two large cast iron counterweights and apron stop for repeat bends. The National name means quality.

Section fingers are precision machined from rolled steel bar stock for maximum strength. The fingers can be adjusted or removed quickly by the loosening of a cap screw. Heavy duty steel plates and tension bars are precision incorporated for minimum deflection

	Specifications
Model	U6-4812	U6-7212	U6-9614	U6-12016
Capacity (Yield Strength 30,000 lbs. @ rated capacity)	Mild Steel 12 Gauge: 2.7mm Stainless Steel 16 Gauge: 1.6mm	Mild Steel 12 Gauge: 2.7mm Stainless Steel 16 Gauge: 1.6mm	Mild Steel 14 Gauge: 1.9mm Stainless Steel 18 Gauge: 1.2mm	Mild Steel 16 Gauge: 1.6mm Stainless Steel 20 Gauge: .9mm
Maximum Depth of Box	6”/152mm	6”/152mm	6”/152mm	6”/152mm
Bending Length	49”/1245mm	73”/1854mm	97”/2464mm	121”/3073mm
Shipping Weight	1900lbs/862kgs	2530lbs/1148kgs	2800lbs/1270kgs	3200lbs/1452kgs
Floor Space w/ counterweight	95” x 27” x 55” 2413 x 686 x 1397mm	126 1/2” x 29” x 59” 3213 x 737 x 1499mm	153” x 27” x 59” 3886 x 686 x 1499mm	177” x 29” x 59” 4496 x 737 x 1499mm
