1/4 Hydraulic Shears: 5 Year Warranty - Made in USA

National offers four powerful heavy duty precision hydraulic shears with all steel cutter heads and tables. Standard with hydraulic rubber inserted hold downs, quick adjusting back gauge for direct reading with a positive lock, front arm extensions, table gauges, heavy duty foot switch and well lighted work area. You receive a full three year warranty. The hydraulic unit conforms to J.I.C. standards featuring simplicity of design. The National hydraulic system is simple to maintain with standard replacement parts such as valves, cylinders, hoses and oil. The National shear is actuated by a portable shrouded electric foot switch attached to a long flexible cable so it may be positioned comfortable to the operator.

National Shears have high carbon, high chromium blades with four cutting edges of premium quality tool steel and will withstand nicking and wear better than relieved blades. National blades are secured to the shear with tempered flathead screws through countersunk holes in blades. Complete cuts of full width pieces are 2” longer than specified cutting length. The high strength steel side constructed side frames are made of the highest tensile strength metal needed for long life and accurate shearing. Under drive construction with downward cylinders and major hydraulics under the bed gives the shear a low profile.

Optional Accessories:
QUICK SET manual front operated digital back gauge (4' & 6' only)
Models: NBG48, NBG72, NBG96 & NBG120
Squaring Arm
Models: NSA48, NSA72, NSA96 & NSA120

	Specifications

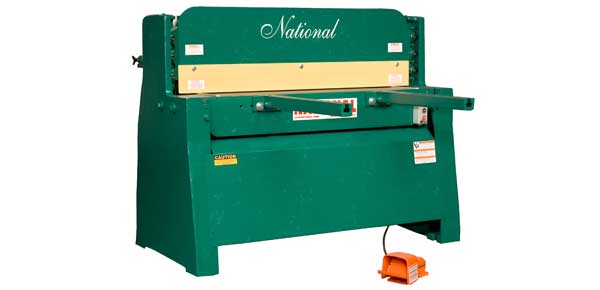

Model	NH4825	NH7225	NH9625	NH12025
Capacity (Tensile Stregnth 55,000 lbs. @ rated capacity)	Mild Steel 1/4”/6.4mm Stainless 1/8”/3.2mm	Mild Steel 1/4”/6.4mm Stainless 1/8”/3.2mm	Mild Steel 1/4”/6.4mm Stainless 1/8”/3.2mm	Mild Steel 1/4”/6.4mm Stainless 1/8”/3.2mm
Strokes Per Minute	Approx. 20	Approx. 20	Approx. 12	Approx. 12
Cutting Legnth	48”/1219mm	72”/1829mm	96”/2438mm	120”/3048mm
Shipping Weight	5000lbs/2268kgs	6000lbs/2722kgs	7000lbs/3176kgs	9000lbs/4091kgs
Floor Space w/ Gauges	66 1/2” x 98” x 54” 1689 x 2489 x 1372mm	84” x 98” x 54” 2134 x 2489 x 1372mm	116” x 98” x 60” 2946 x 2489 x 1524mm	140” x 98” x 60” 3556 x 2489 x 1524mm
Floor Space w/o Gauges	66 1/2” x 38” x 54” 1689 x 965 x 1372mm	84” x 38” x 54” 2134 x 965 x 1372mm	116” x 39 1/4” x 60” 2946 x 997 x 1524mm	140” x 39 1/4” x 60” 3556 x 997 x 1524mm
Oil Reservoir Capacity	24gal/91 liters	24gal/91 liters	24gal/91 liters	24gal/91 liters
Motor Single Phase Available	7 1/2 h.p. 208 volt 1800 rpm 240 volt 3 phase 460 volt	7 1/2 h.p. 208 volt 1800 rpm 240 volt 3 phase 460 volt	7 1/2 h.p. 208 volt 1800 rpm 240 volt 3 phase 460 volt	7 1/2 h.p. 208 volt 1800 rpm 240 volt 3 phase 460 volt
