Air Shears:
5 Year Warranty - Made in USA

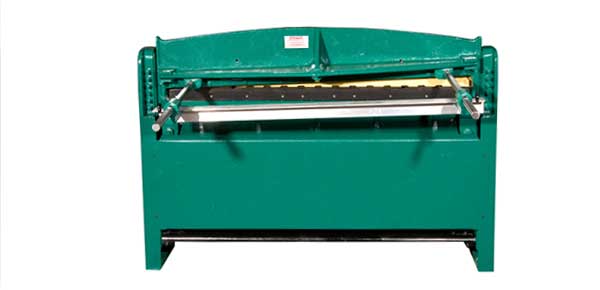

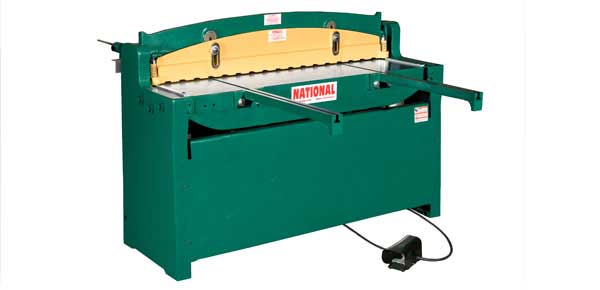

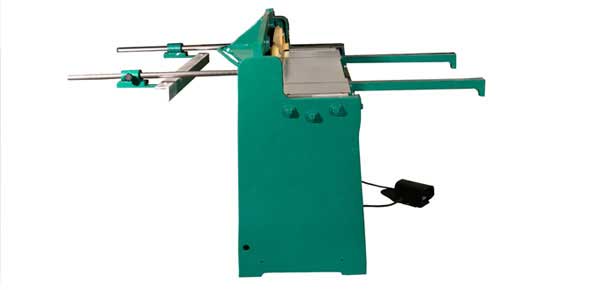

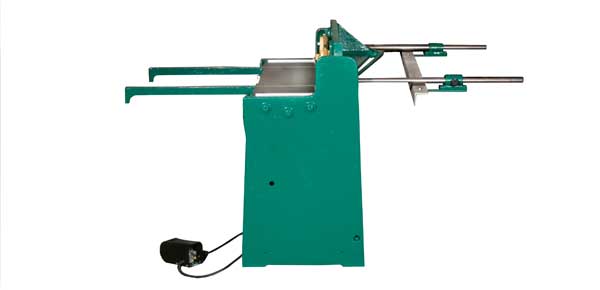

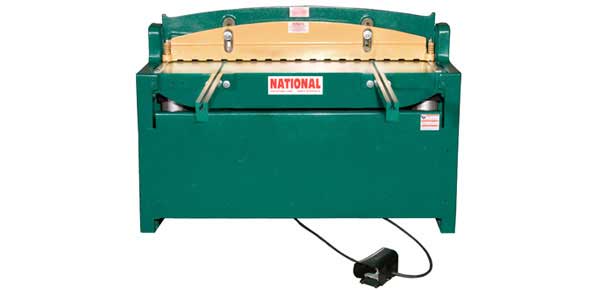

National offers three heavy duty air shears with steel side frames, all steel cutter heads and tables. These air shears are standard with four cutting edge high carbon high chromium blades, front arm extensions, table gauges, back gauges, and heavy duty foot switch.
Optional Accessories:
57” Squaring arm
Model NSA 52
|
| |
Specifications |
| Model |
NA3612 |
NA5216 |
NA5212 |
Capacity
(Tensile Stregnth 55,000 lbs. @ rated capacity) |
Mild Steel
12 Gauge: 2.7mm
Stainless Steel
16 Gauge: 1.6mm |
Mild Steel
16 Gauge: 1.6mm
Stainless Steel
20 Gauge: .9mm |
Mild Steel
12 Gauge: 2.7mm
Stainless Steel
16 Gauge: 1.6mm |
| Strokes Per Minute |
Approx. 40 |
Approx. 40 |
Approx. 40 |
| Cutting Legnth |
36"
914mm |
52"
1321mm |
52"
1321mm |
| Shipping Weight |
1100 lbs
499 kgs |
1400 lbs
635kgs |
1600 lbs
726 kgs |
| Floor Space w/ Gauges |
45” x 75 7/8” x 42 1/4”
1143 x 1927 x 1073mm |
61” x 75 7/8” x 42 1/4”
1549 x 1927 x 1073mm |
62” x 75 7/8” x 42 1/4”
1575 x 1927 x 1073mm |
| Floor Space w/0 Gauges |
45” x 22 3/4” x 42 1/4”
1143 x 578 x 1073mm |
61” x 22 3/4” x 42 1/4”
1549 x 578 x 1073mm |
62” x 22 3/4” x 42 1/4”
1575 x 578 x 1073mm |
| Recommended p.s.i. |
100 |
100 |
100 |
