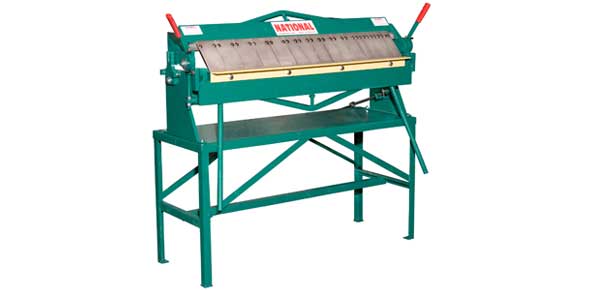

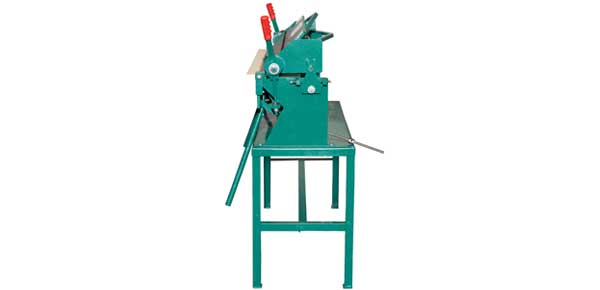

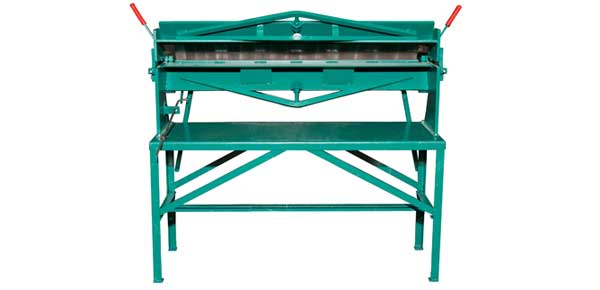

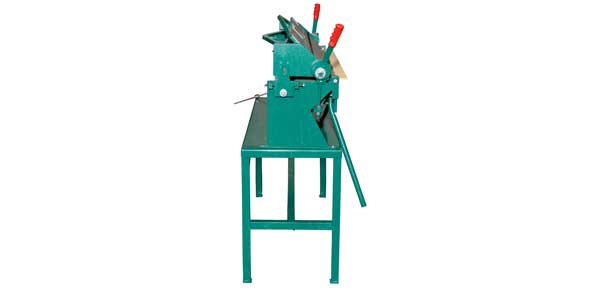

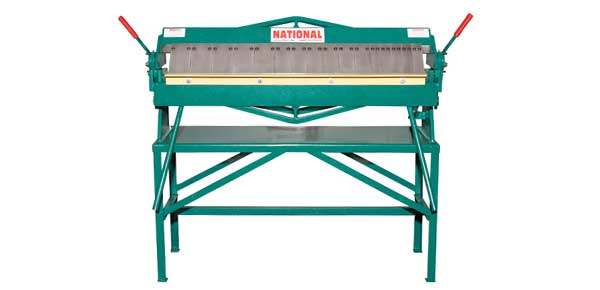

Bench Brakes: 5 Year Warranty - Made in USA

Lifetime Warranty
Simplicity of design allows these brakes to work in the most direct fashion. Easy to set up and operate. Body sections are welded steel plates, with heavy truss rods and braces for longer life and greater strength. These brakes are standard with extension handles, apron stop for repeat bends, and replaceable bushings at points of wear.
  Specifications
Model U4816 S4816 Stand
Capacity
(Yield Strength 30,000 lbs. @ rated capacity)
Mild Steel 16 Gauge
1.6mm
Stainless 20 Gauge
.9mm
Mild Steel 16 Gauge
1.6mm
Stainless 20 Gauge
.9mm

Maximum Lift of Beam 1 1/4”/32mm 1 1/4”/32mm
Finger Width 2” 3” 4”
51mm 76mm 102mm

Maximum Depth of Box 4”/102mm
Bending Length 48 1/4”/1226mm 48 1/4”/1226mm
Shipping Weight 500lbs/227kgs
1689 x 965 x 1372mm
470lbs/213kgs
2134 x 965 x 1372mm
100lbs/45kgs
Floor Space     54”x19”x271/4”
1372x483x692mm
