Metal Shears: 5 Year Warranty - Made in USA

Lifetime Warranty

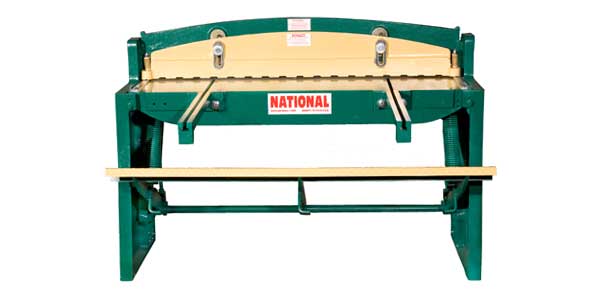

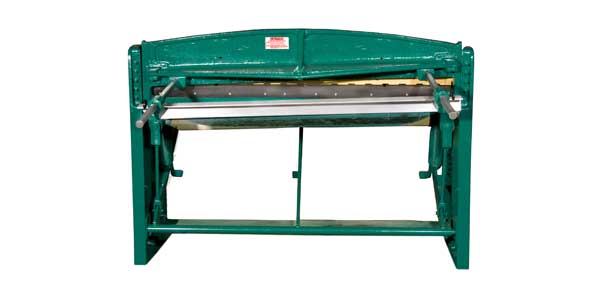

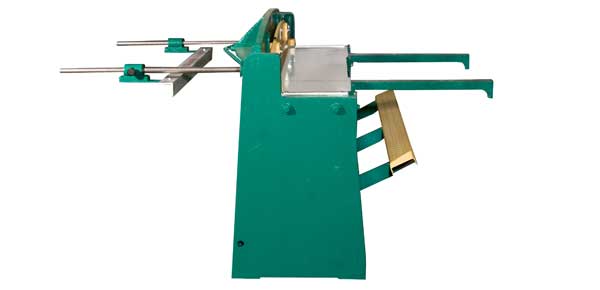

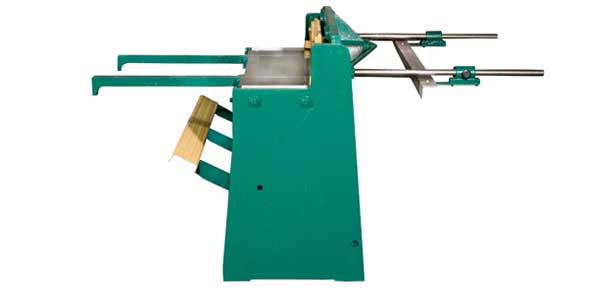

National foot shears are designed for precise shearing through 16 gauge mild steel. This shear is also recommended for shearing aluminum, plastic, copper, brass and lead. All steel side frames, all steel tables and cutter heads with four cutting edge high carbon, high chromium blades, back gauges, table gauges, spring actuated hold down, front arm extensions, bottom treadle safety stop and full three year warranty.
  Specifications
Model N5216
Capacity
(Tensile Strength 55,000 lbs. @ rated capacity)
Mild Steel
16 Gauge: 1.6mm
Stainless Steel
20 Gauge: .9mm
Cutting Legnth 52"
1321mm
Shipping Weight 980 ibs
445 kgs
Floor Space w/ Gauges 61" x 75 7/8" x 42 1/4"
1549 x 1927 x 1073mm
Floor Space w/o Gauges 61" x 34 1/4" x 42 1/4"
1549 x 870 x 1073mm
